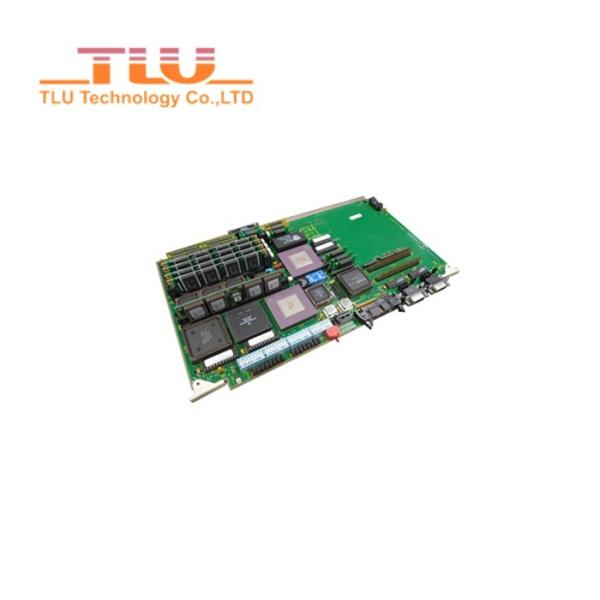

ABB DSAX 110 57120001-PC SE96921307 2668 404-24/5 Card ABB PLC Module

Process Data Transfer is managed through Cyclic Data Packets (CDPs). Each CDP is configured on the communication interface for a certain signal identity, cycle time, size, and direction.

The signal identity is the common identifier for the corresponding send and receives CDPs on the bus. Each CDP has a unique signal identity among the sending CDPs. Several receiving CDPs, however, can have the same signal identity, if they are situated in different communication interfaces.

A wide range of products is available to allow for a cost-efficient and reliable engineering of the EMS systems. The well tested and documented products (software type circuits and system software modules) guarantee a significantly decreased project execution time and (even more important) shorter commissioning periods.

The number of data-bytes determines the size of data transferred on the bus. The possible sizes are 2, 4, 8, 16, and 32 bytes. The size of the CDP must be equal at the sending and receiving ends. Unless both the size and the signal address of corresponding CDPs are correct, no transmission is performed.

Contact For More
